Designing ancient ships with Zhongwang 3D modeling
Place the mast and lantern at the front end
Add bracket to improve safety and stability
Set seats and tables at the end of the hull
Rendered ancient ship model
Sister paper designer share: 3D design in 3D CAD
It is said that it is sent to the world, one of the seas. Life is too short, why not enjoy your dreams with your own ancient ship... As a 3D CAD designer who is about to leave the school, living a fast-paced life every day, I dream of driving a boat and floating in the river. In the middle, with friends, singing songs, not so happy! However, the ideal always contradicts the reality, so I have to draw the ancient ship and hope it in the virtual environment. This is why I painted the ancient ship. Because of the need for rapid modeling, I chose 3D software for CAD modeling design in 3D software. Here are the design tips for the little girl:
First, the design idea:
Before that, let me talk about the idea of ​​this three-dimensional model ancient ship. First of all, this ancient ship is completely imitation of the shape of an ancient small passenger ship, with masts and lanterns placed at the front, as shown below:
Secondly, it adopts a semi-circular arched roof structure, which looks sporty and retro, and specially added brackets to improve safety and stability. There are two wooden stairs inside the hull, which are easy to move up and down. As shown below:
Finally, set the seat and table at the end of the hull, and play with the friends on the wine, it is also a pleasure!
Second, Zhongwang 3D modeling design skills (select representative paddles as an example)
After introducing my ancient ship idea, the following talks about how to carry out the modeling design of the ancient ship. However, due to the large number of components, most of them basically use the modeling function. I will select a representative paddle as an example. Explain how to perform fast 3D CAD modeling in Zhongwang 3D software:
The first step is to draw the handle. Select the XY plane to insert the sketch, draw a circle with a diameter of 20mm, click Exit, select the stretch option, select the symmetry for the stretch type, and the end point is 30. Click OK to finish drawing the handle, as shown below:

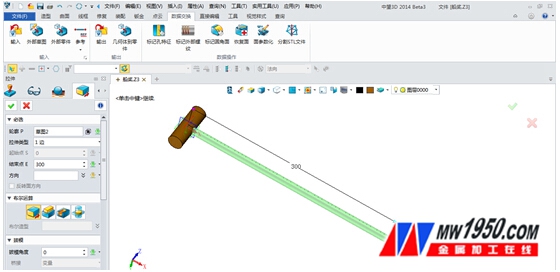

The second step: the drawing of the paddle. Select the YZ plane to insert the sketch, draw a circle with a diameter of 10mm, click to exit and select the stretching option, the stretching type is 1 side, the ending point is 300, and the drawing of the front end of the paddle is completed:
According to the above steps, the drawing of the back end of the paddle is completed in turn, and then the operation of the ship's paddles is carried out for rounding, and finally the drawing of the paddle is completed:
I will not repeat the rest of the components. If you are interested, you can further discuss with me about 3D software. If necessary, I will continue to share the design process of the remaining works. Finally, the ancient ship model works after the above image is rendered:
In this way, the modeling of the oars can be completed quickly with Zhongwang 3D, and the whole process can be completed so quickly, thanks to the powerful modeling function of Zhongwang 3D. It is not similar to foreign 3D software such as UG, CATIA is cumbersome and complicated, it is simple to operate, the interface is neat, it does not make people feel messy, and each command looks clear and easy to understand, very suitable for beginners. What I like the most is that it also provides the special service of “learning by using†option. We can modify the model in the tutorial so that every beginner has an intuitive feeling, no longer watching The tutorial prompts to draw the model, but it is similar to the teacher's hands to guide you in 3D modeling, which I especially admire.
Here I would like to share my personal opinion with you: In fact, for 3D graphics software, each software has its own characteristics, it depends on which 3D software is right for you, and I think 3D I think the outstanding features. It's quick modeling, which makes my work more effective. It is this advantage that allows me these little women to quickly join the design of 3D CAD. I believe that after everyone exchanges and studies, plus the video tutorial of Zhongwang 3D official website, everyone will complete their own transformation and become a real design everyone! By the way, the 3rd Zhongwang 3D Global Innovation Design Competition held recently has a grand prize of 100,000 yuan. It is an opportunity to exercise your skills. Come on!
